Air Classifier Mill

Air Classifier Mill is an integrated dry-process ultrafine grinding equipment combining impact pulverization and built-in air classification. It is widely used for kaolin and other mineral fillers, featuring adjustable fineness, narrow PSD and strong de-agglomeration. It can be directly connected with modification and packaging equipment to form a complete production line.

Email us I Need Solutions

Air Classifier Mill

How It Works

Technical breakdown of the core processes and technology behind Air Classifier Mill.

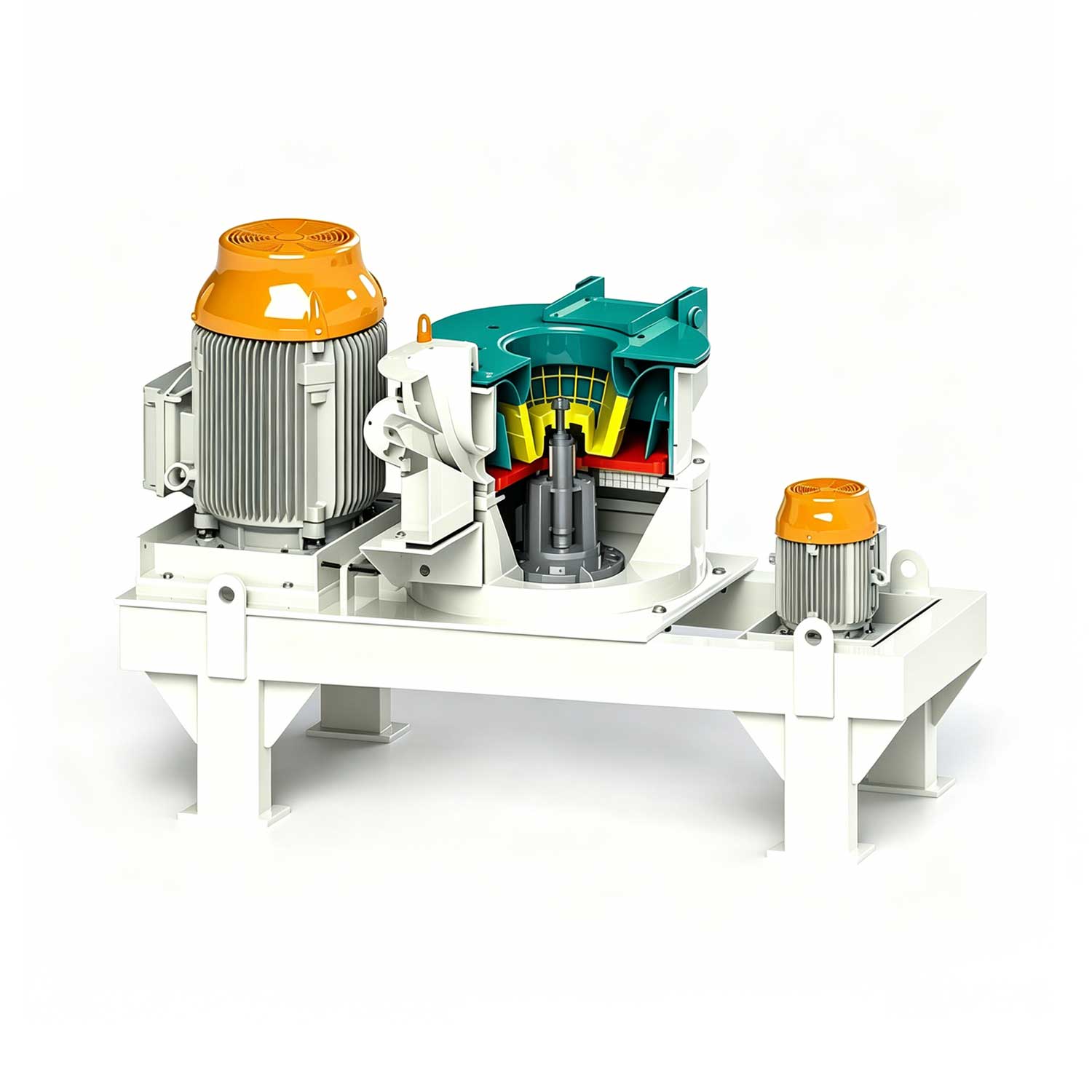

Raw material enters the grinding chamber through the feed valve and is crushed by high-speed rotating impact discs under strong impact, shear and collision forces. The airflow carries crushed particles upward to the turbine classifier. Qualified fine powder passes through the classifier and is collected by the cyclone and bag dust collector, while oversized coarse particles are thrown back to the grinding chamber for re-grinding under centrifugal force, forming a closed-circuit continuous grinding cycle.

Air Classifier Mill

Technical Parameters

Air Classifier Mill defines excellence through quantified data, meeting the most stringent requirements of high-precision material processing.

Swipe left or right to see more

Model Series: JCSM-V	280	350	410	510	630	710	800	900	1000	1100	1250	1500	2000
Grinding motor power (kW)	7.5	11	22	30	37	45	55	75	90	110	160	200	355
Classification motor power (kW)	2.2	3	4	5.5	7.5	7.5	11	15	18.5	22	30	45	55
Particle size (μm)	12~150	12~150	12~150	12~150	10~120	10~120	10~120	10~120	8~120	8~120	8~120	8~120	8~120
Air volume(max) (m³/h)	720	1200	1800	3000	3600	4500	5400	8000	10000	12000	16500	22500	36000

Model Series: JCSM-A	280	350	450	510	710	900	1100	1250
Grinding motor power (kW)	7.5	11	22	30	45	75~90	110~132	160~200
Classification motor power (kW)	1.5	3	4	5.5	7.5	15	22~30	30~37
Particle size (μm)	12~150	12~150	12~150	12~150	10~120	10~120	10~120	10~120
Air volume(max) (m³/h)	600	1200	2400	3000	4500	8000	12000	16000

Model Series: JCSM-L	280	350	450	630	780	1000	1350
Grinding motor power (kW)	11	22	45	75~90	130~160	200~250	250~355
Classification motor power (kW)	2.2	4	11	18.5	30	37~45	45~75
Particle size (μm)	10~100	10~100	10~100	8~120	8~120	1~150	1~150
Output (kg/h)	0.05~0.6	0.1~1.2	0.25~3.0	0.5~6.0	1.0~15.0	1.5~25	2.5~40

Model Series: JCSM-H	280	410	510	630	710	800	900	1000	1250	1500
Grinding motor power (kW)	7.5	22	30	37	45	55	75	90	132	200
Classification motor power (kW)	4	5.5	7.5	11	11	15	18.5	22	30	45
Particle size (μm)	5~150	5~150	5~150	8~120	8~120	8~120	8~120	10~150	10~150	10~150
Air volume(max) (m³/h)	600	1800	3000	3600	4500	5400	6000	7500	12000	16500

Model Series: JCSM-WH	280	400	500	630	800	1000	1250
Grinding motor power (kW)	7.5	22	30	37	55	90	132
Classification motor power (kW)	4	5.5	7.5	11	15	22	30
Particle size (μm)	8~120	8~120	8~120	10~150	10~150	12~150	12~150
Air volume(max) (m³/h)	600	1200	1600	2400	4000	6000	10000
