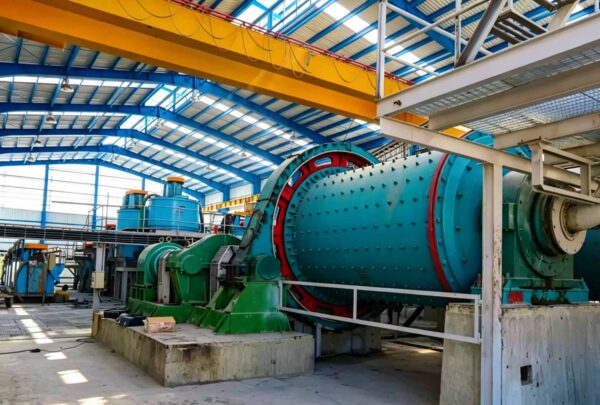

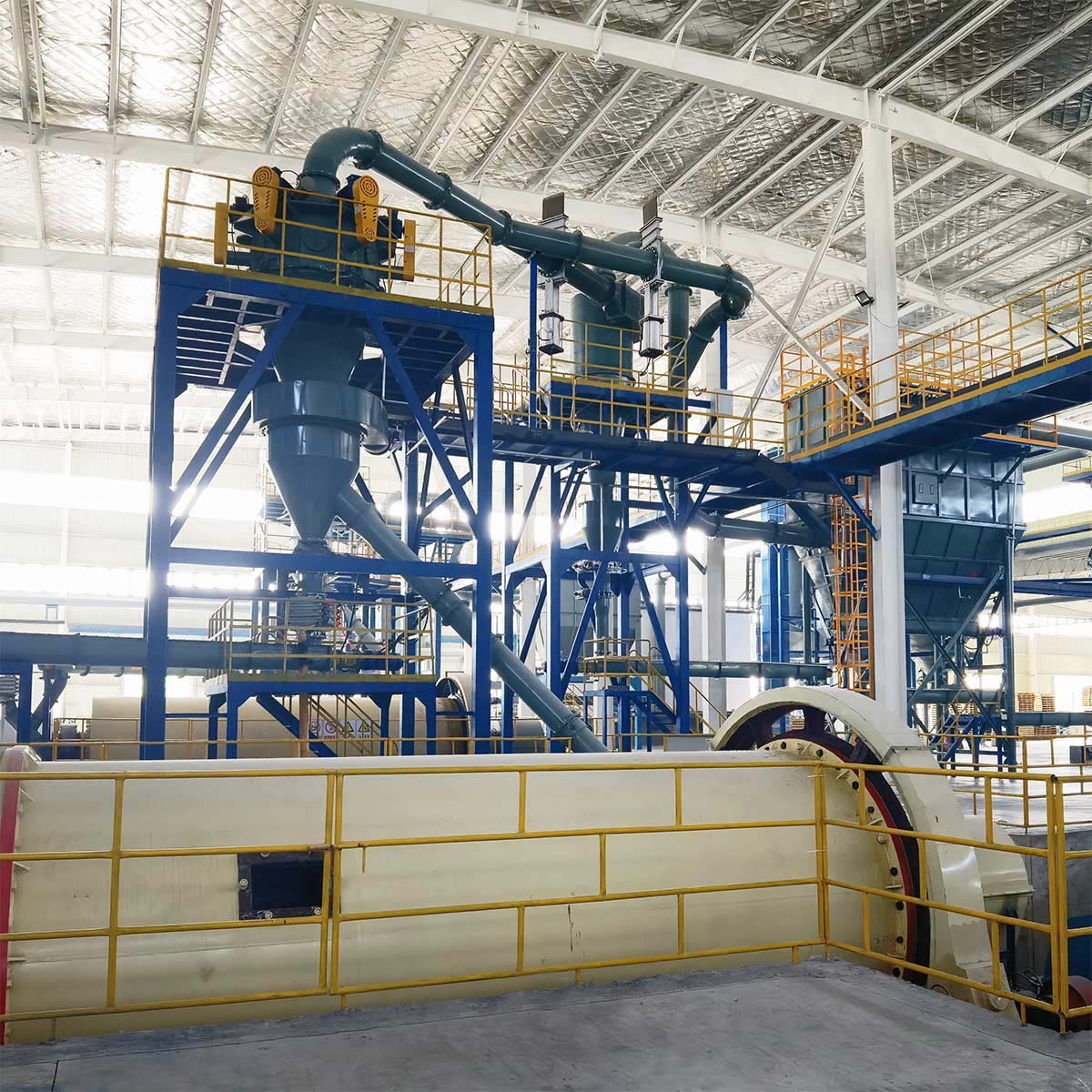

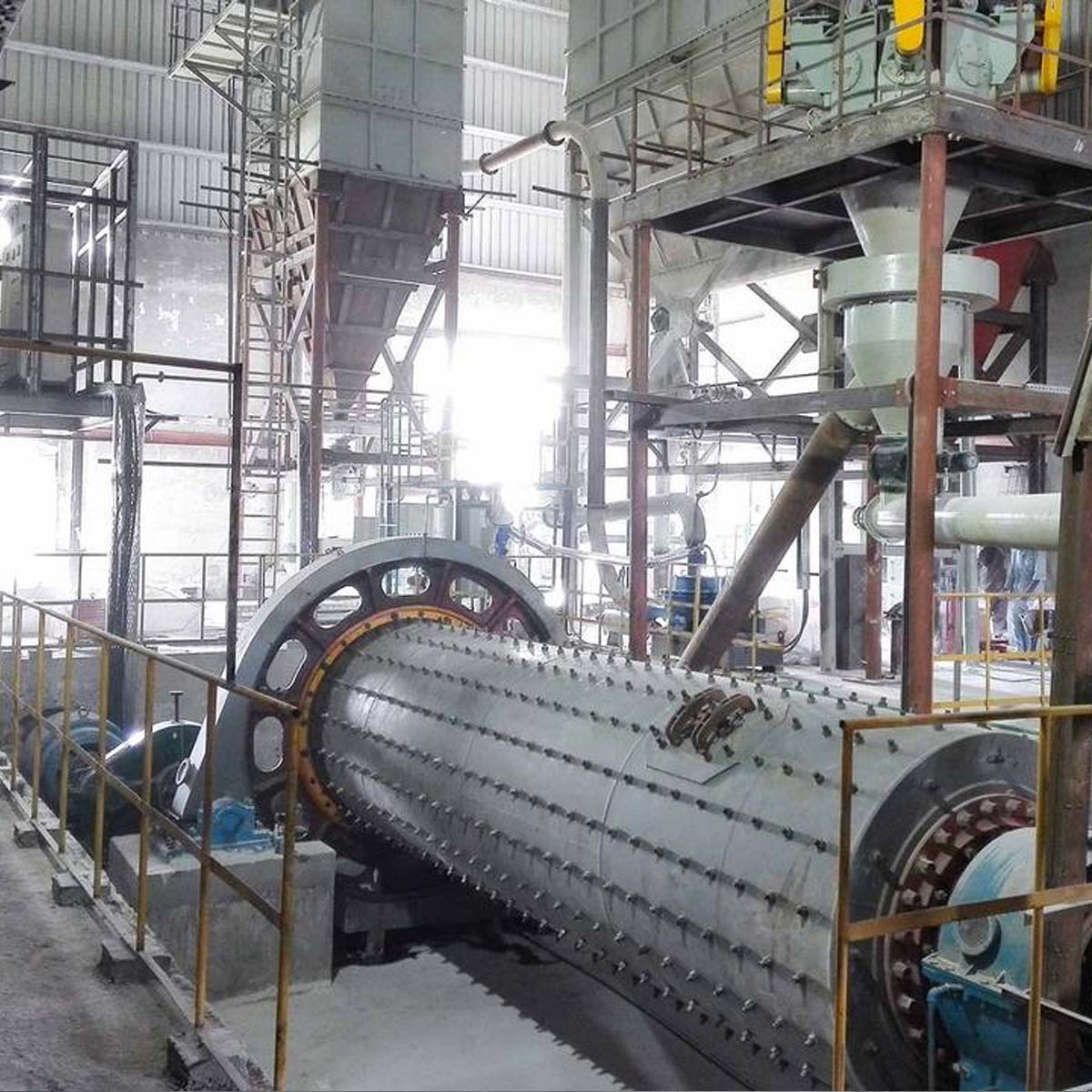

Ball Mill And Air Classifier Production Line

This closed-circuit dry grinding set matches ceramic ball mill with vertical air classifier, designed for mass kaolin filler production. It realizes continuous grinding and online grading, stable output medium-fine kaolin with controllable fineness. Low unit consumption and large throughput make it the mainstream scheme for coating, plastic and rubber-grade kaolin.

Email us I Need Solutions

How It Works

Technical breakdown of the core processes and technology behind Ball Mill And Air Classifier Production Line.

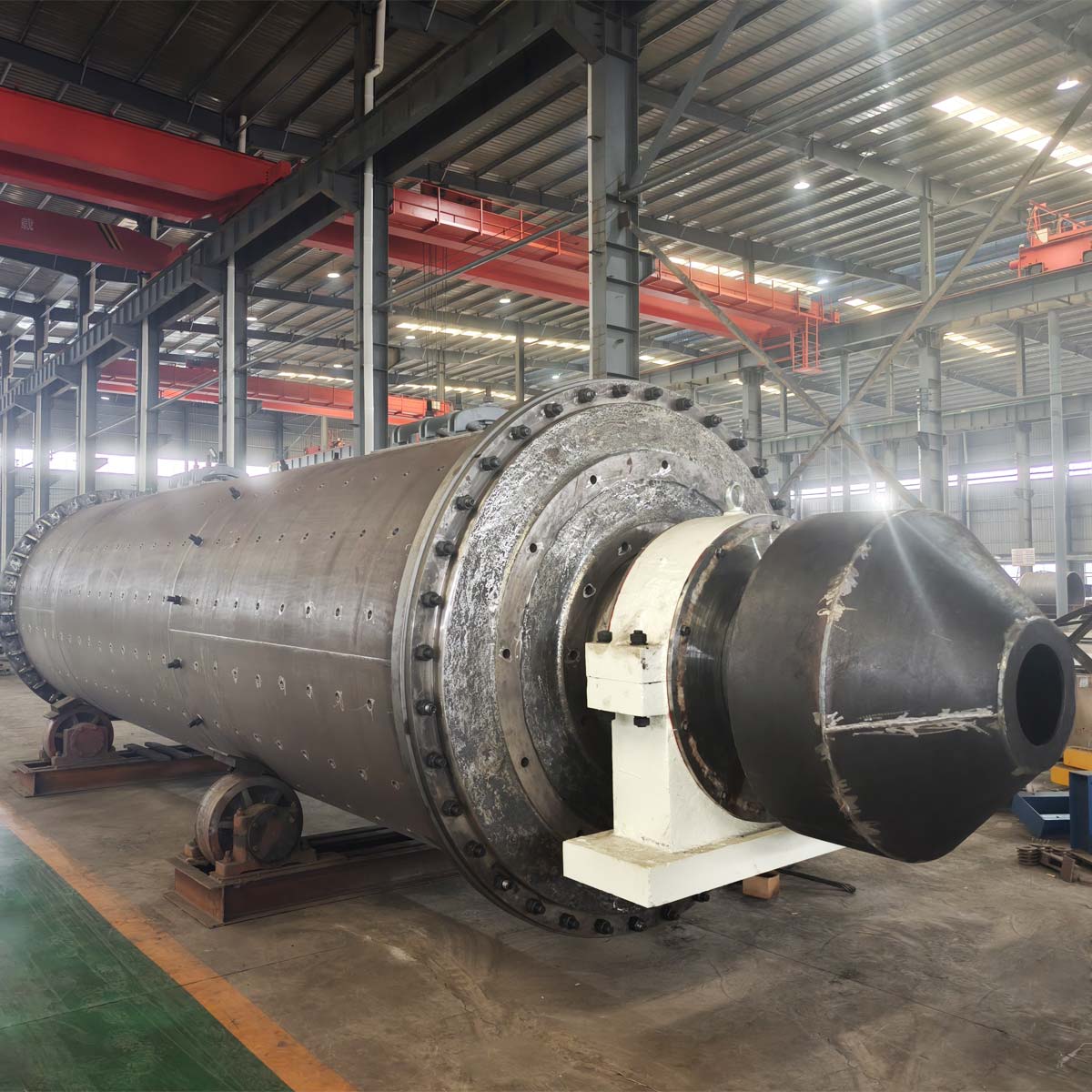

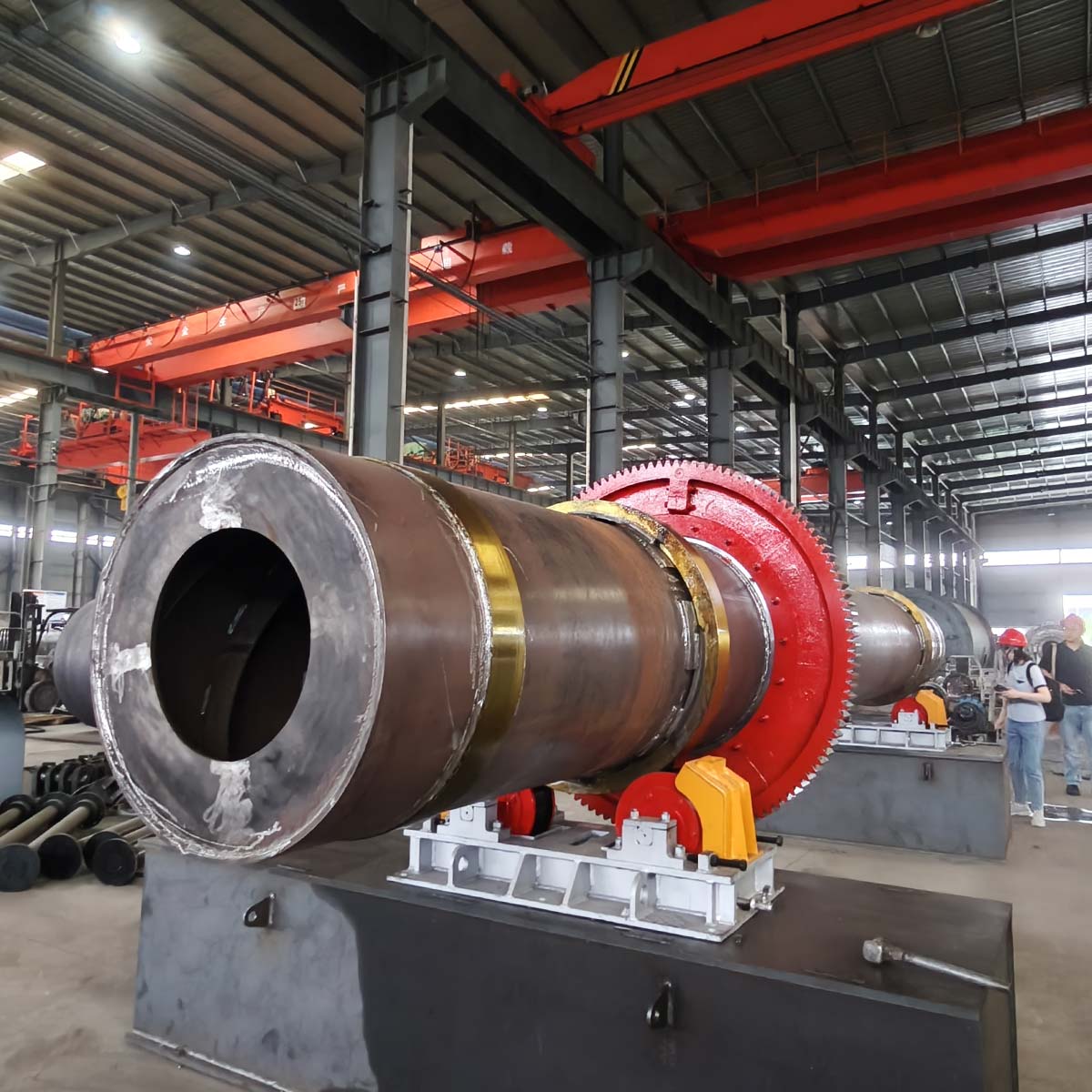

Raw kaolin enters the ceramic-lined ball mill, ground by inert ceramic grinding media to avoid metal pollution. Ground flaky kaolin powder is extracted by airflow and sent into vertical air classifier. Fine qualified flakes pass through the turbine wheel and enter dust collectors as finished products. Oversized agglomerated kaolin is separated and conveyed back to the ball mill for regrinding, forming fully automatic closed-circuit circulation. Adjusting classifier speed can flexibly switch finished kaolin mesh standards.

Ball Mill And Air Classifier Production Line

Technical Parameters

Ball Mill And Air Classifier Production Line defines excellence through quantified data, meeting the most stringent requirements of high-precision material processing.

Swipe left or right to see more

Model Series: JBM (CaCO₃ Application)	1830	2200	2400	2600	2800	3000
Ball Mill Power (kW)	220	320	450	630	710	800
Classifier Power (kW)	192	290	384	580	670	764
Coarse Crushing System Power (kW)	37	55	65	90	90	110
Conveying and Packaging Power (kW)	11	22	22	30	37	37
Air Compressor Power (kW)	18.5	30	45	55	75	90
Capacity at D97:15μm (t/h)	2.7	4	5.4	8	9.4	11
Capacity at D97:10μm (t/h)	2	3	4	6	7	8
Capacity at D97:5μm (t/h)	0.9	1.3	1.8	2.7	3	3.6
